▶ 응용1 : Configmap의 환경변수들을 Secret을 사용해서 작성하고, App에서는 같은 결과가 나오도록 확인해 보세요.

☞ Secret을 이렇게 사용하는 경우는 별로 보지 못했습니다. 여러가지 방법으로 Secret을 만들어본다는데 의의를 두시면 됩니다.

Step1. Secret 생성 (1) - dashboard

apiVersion: v1
kind: Secret
metadata:
  namespace: anotherclass-123
  name: api-tester-1231-properties
  labels:
    part-of: k8s-anotherclass
    component: backend-server
    name: api-tester
    instance: api-tester-1231
    version: 1.0.0
    managed-by: dashboard
stringData:
  spring_profiles_active: "dev"
  application_role: "ALL"
  postgresql_filepath: "/usr/src/myapp/datasource/dev/postgresql-info.yaml"

Step1 - Secret 생성 (2) - kubectl #1

kubectl apply -f - <<EOF
apiVersion: v1
kind: Secret
metadata:
  namespace: anotherclass-123
  name: api-tester-1231-properties
  labels:
    part-of: k8s-anotherclass
    component: backend-server
    name: api-tester
    instance: api-tester-1231
    version: 1.0.0
    managed-by: dashboard
data:
  spring_profiles_active: $(echo -n "dev" | base64 -w0)
  application_role: $(echo -n "ALL" | base64 -w0)
  postgresql_filepath: $(echo -n "/usr/src/myapp/datasource/dev/postgresql-info.yaml" | base64 -w0)
EOF

Step1 - Secret 생성 (2) - kubectl #2 (이렇게 쓰는건 label 넣기도 불편하고, 명령어 관리가 불편하긴 해요)

kubectl create secret -n anotherclass-123 generic api-tester-1231-properties2 --from-literal=spring_profiles_active=dev --from-literal=application_role=ALL --from-literal=postgresql_filepath="/usr/src/myapp/datasource/dev/postgresql-info.yaml"

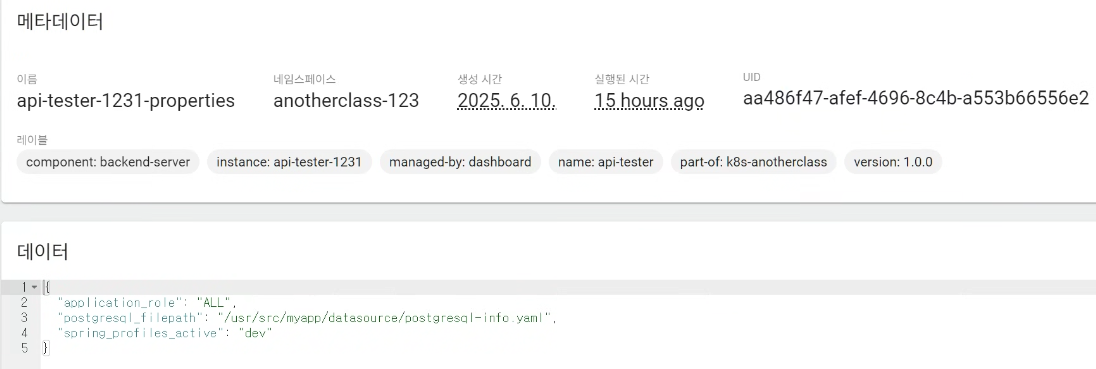

결과 확인

Step2. Deployment의 envFrom.secretRef 부분 업데이트(1) - 대시보드

apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: anotherclass-123
  name: api-tester-1231
spec:
  template:
    spec:
      nodeSelector:
        kubernetes.io/hostname: k8s-master
      containers:
        - name: api-tester-1231
          image: 1pro/api-tester:v1.0.0
          envFrom:
            - secretRef:
                name: api-tester-1231-properties

Step2. Deployment의 envFrom.secretRef 부분 업데이트(2) - kubectl

kubectl edit -n anotherclass-123 deployments.apps api-tester-1231

▶ 응용2 : 반대로 Secret의 DB정보를 Configmap으로 만들어보고 App을 동작시켜 보세요

☞ Configmap을 Volume에 연결해서 쓰는 케이스는 매우 많습니다.

Step1 - ConfigMap 생성

apiVersion: v1
kind: ConfigMap
metadata:
  namespace: anotherclass-123
  name: api-tester-1231-postgresql
  labels:
    part-of: k8s-anotherclass
    component: backend-server
    name: api-tester
    instance: api-tester-1231
    version: 1.0.0
    managed-by: dashboard
data:
  postgresql-info.yaml: |
    driver-class-name: "org.postgresql.Driver"
    url: "jdbc:postgresql://postgresql:5431"
    username: "dev"
    password: "dev123"

결과

Step2. Deployment의 envFrom.secretRef 부분 업데이트(1) - 대시보드

apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: anotherclass-123
  name: api-tester-1231
spec:
  template:
    spec:
      nodeSelector:
        kubernetes.io/hostname: k8s-master
      containers:
        - name: api-tester-1231
          image: 1pro/api-tester:v1.0.0
          volumeMounts:
            - name: configmap-datasource
              mountPath: /usr/src/myapp/datasource/dev
      volumes:
        - name: configmap-datasource
          configMap:
            name: api-tester-1231-postgresql

Step2. Deployment의 envFrom.secretRef 부분 업데이트(2) - kubectl

kubectl edit -n anotherclass-123 deployments.apps api-tester-1231
